5kw Digital C-arm system Flat panel detector YSX-C50F
Item No.: YSX-C50F
5kw Digital C-arm system Flat panel detector YSX-C50F
| Product parameters | |
| Brand: | YSENMED |
| MOQ: | 1 |
| Package: | Wooden Package |
| Ship From: | Guangzhou |
| Lead Time: | 1-3 days |
| Customization: | Yes |
Description
5kw Digital C-arm system Flat panel detector YSX-C50F
|
Components：
X-ray Tube (5.0KW) IMD 1Set 1344x1344x16bit Flat Panel Detector1344x1344x16bit Thales (or iRay) 1Set 3、 C-arm and workstation ( AIO) 1Set 4、 Laser Positioning Device 1Set 5、Electric Adjustable Beam Limiting Device 1Set 6、23’ Liquid Crystal Display with High Resolution 1Set 7、Battery management System 1Set 8、 Charging pole 1Set |
|
|
Item
|
Parameter
|
|
X-ray Tube (High Voltage Generator) IMD |
Power for High Frequency Inverter: 5.0 kW Frequency for Main Inverter :40kHz Max Power for Toshiba Tube Core and Fluoroscopy: 1.44kW X-ray Tube Assembly Heat Capacity: 1333 kHu |
|
Fluoroscopy Mode
|
|
|
Intelligent Low-dose Framing Fluoroscopy |
Adopted the intelligent low-dose framing fluoroscopy technology, to adjust pulse frequency automatically. Although there is a moving object under the flat panel, you can get a clear sharpness image. The technology ensures the good quality in image and reduces a great exposure dose.
|
|
3 Modes Manuel （Limbs， Abdomen，Spine） |
40kV-120kV； The limbs：0.5-4mA；
The abdomen：2.5-6mA； The spine：4.5-8mA |
|
3 Modes Auto （Limbs， Abdomen，Spine） |
According to density to set an optimized exposure dose. 40-120kV； The limbs：0.5-4mA The abdomen：2.5-6mA; The spine：4.5-8mA |
|
Enhanced Fluoroscopy |
40kV-120kV； 12 mA
|
|
Pulse Fluoroscopy |
40kV-120kV；The limbs：0.5-4mA
The abdomen：2.5-6mA; The spine：4.5-8mA |
|
Beam Limiting Device |
Sigle page with rotation |
|
C Arm Stand
|
|
|
Battery Management System |
Adopted a new generation of power supply, battery management system in the fully charged state by means of battery power for exposure, two major technical characteristics make the c-shaped arm movement “following your heart.” |
|
Laser Positioning |
YES
|
|
Focus Screen Distance |
1000mm
|
|
Depth in Arc
|
670mm
|
|
H. Movement
|
200mm
|
|
V. Movement
|
400mm
|
|
Opening Size
|
800mm
|
|
Waving
|
±12.5°
|
|
Rotation
|
±180°
|
|
Orbital Rotation
|
125°(-35°-- +90°)
|
|
Main Wheel Rotation Angle (Electric) |
-90º、-45º、0º、45º、90º
|
|
C-arm and workstation ( AIO)
|
Integrated design for C- arm and workstation, the workstation is embedded into c-arm |
|
Flat Panel Detector(Thales, or you can choose iRay) |
|
|
Imaging Area Size |
21.0cm × 21.0 cm
|
|
Pixel Matrix |
1344 × 1344
|
|
Pixel Size |
154um
|
|
Image Sharpness Index |
Control Resolution: 31 lp/cm; Grey Scale: 16 grade
|
|
Flat Panel Imaging Rotation |
Digital image rotation around 360 degree angle without X ray, which is easy to be watched by doctor.
|
|
|
|
|
1、sharpening
|
YES
|
|
2、Window Width and Window Level
|
YES
|
|
3、Smart Noise Reduction Processing
|
YES
|
|
4、Real-time Gain
|
YES
|
|
5Image storage and patient archives management
|
Image conversing, up-down and right-left rotating, end frame freezing
|
|
|
Patient archives management; edit diagnosis report
|
|
|
The image can be stored as JPG,AVI and DICOM 3.0 format, can be linked to hardware, USB,DVD and printer, meet the need of sharing the network information, communication and storage in hospital
|
|

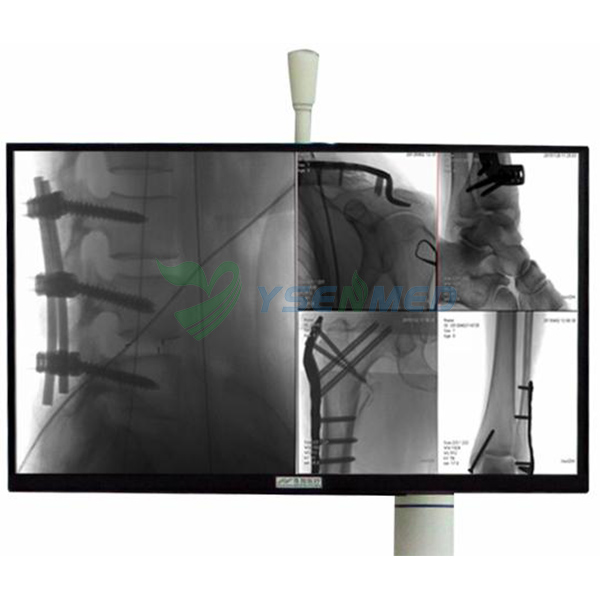

Touching Display |
1 set of 23’ liquid crystal touch screen, with split screen technology to display images
|
