Многофункциональная электрическая дрель/пильная система YSDZ0501
Предмет №: YSDZ0501
Высокопроизводительная многофункциональная электрическая костная дрель/пильная система YSDZ0501
ОПИСАНИЕ
Multifunction Electric Bone Drill / Saw System YSDZ0501
YSDZ0501's Technical Data:
Charger input voltage AC220V/50HZ
Unit rise in temperature < 25°
Frequency > 15000rpm
Speed (drill) >600rpm
Speed (acetabulum burnishing drill) >130rpm
Torque (quick chuck) >7500G/C
Torque (reamer) >33000G/C
Torque (HOLLOW DRILL) > 11200G/C
Weight: 3100g

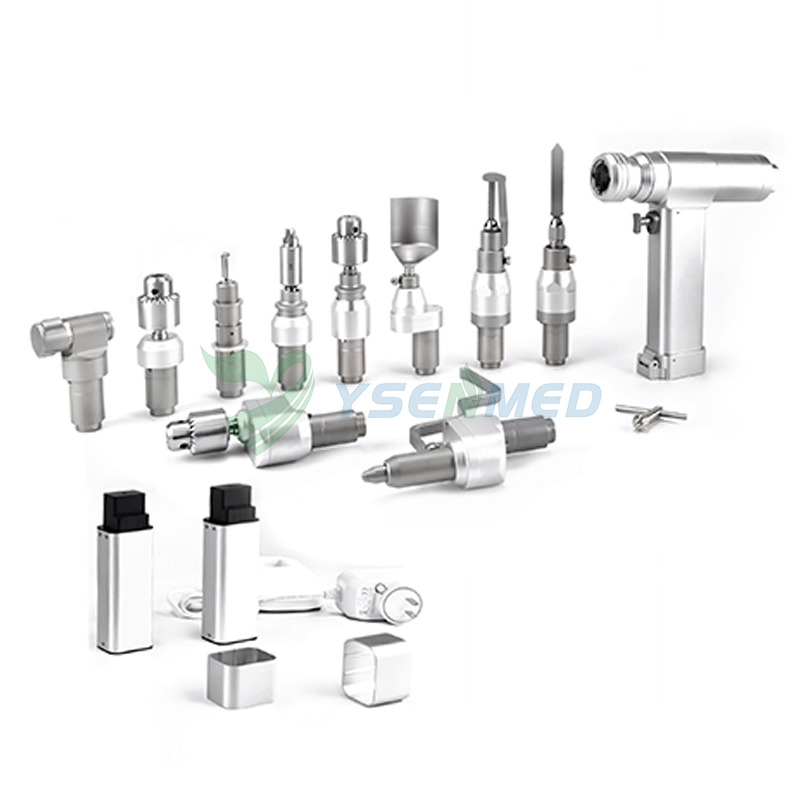

YSDZ051 Standard configuration:
Multi-function main 1
Battery 2
Disinfection channel 2
Charger 1
Aluminum alloy box 1
Bone drill assembly 1
Pendulum saw assembly 1 +2 saw blade
Hollow drill assembly 1
Slow drill assembly 1
Craniotomy assembly 1 +1 craniotomy drill
Cranio milling assembly + 2 milling cutters
Sternal bone saw assembly 1
YSDZ0501 Technical features:
1. Main frame is made of stainless steel, durable, long working hours, the accessories can be selected freely for different operation.
2. Quick chuck: Imported chuck ensures outstanding performance during operation.
3. Sternum saw: Both 360° rotating head and blade guard can protect soft tissue around sternum.
4. Craniotomy mill: 40000r.p.m rate ensures fast, efficient and safe process in craniotomy.
5. Oscillating saw: 360°rotating head can be applied to any surgical area. Wrench-free device allows easy, fast and safe loading and unloading blades.
6. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to various mills.
7. Wire and pin chuck: A canula with diameter 4.0mm applies to various intramedullary pin or kirschner pin fixing operation easily and conveniently.
8. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
9. Highest quality
10. Perfect ergonomic design
11. Applicable to different kinds of surgery options.
Rechargeable Battery
Optional Sterilization Case
More pictures
YSDZ0501's Technical Data:
Charger input voltage AC220V/50HZ
Unit rise in temperature < 25°
Frequency > 15000rpm
Speed (drill) >600rpm
Speed (acetabulum burnishing drill) >130rpm
Torque (quick chuck) >7500G/C
Torque (reamer) >33000G/C
Torque (HOLLOW DRILL) > 11200G/C
Weight: 3100g
YSDZ051 Standard configuration:
Multi-function main 1
Battery 2
Disinfection channel 2
Charger 1
Aluminum alloy box 1
Bone drill assembly 1
Pendulum saw assembly 1 +2 saw blade
Hollow drill assembly 1
Slow drill assembly 1
Craniotomy assembly 1 +1 craniotomy drill
Cranio milling assembly + 2 milling cutters
Sternal bone saw assembly 1
YSDZ0501 Technical features:
1. Main frame is made of stainless steel, durable, long working hours, the accessories can be selected freely for different operation.
2. Quick chuck: Imported chuck ensures outstanding performance during operation.
3. Sternum saw: Both 360° rotating head and blade guard can protect soft tissue around sternum.
4. Craniotomy mill: 40000r.p.m rate ensures fast, efficient and safe process in craniotomy.
5. Oscillating saw: 360°rotating head can be applied to any surgical area. Wrench-free device allows easy, fast and safe loading and unloading blades.
6. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to various mills.
7. Wire and pin chuck: A canula with diameter 4.0mm applies to various intramedullary pin or kirschner pin fixing operation easily and conveniently.
8. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
9. Highest quality
10. Perfect ergonomic design
11. Applicable to different kinds of surgery options.
Rechargeable Battery
Saw blades Drills
Optional Sterilization Case
More pictures
