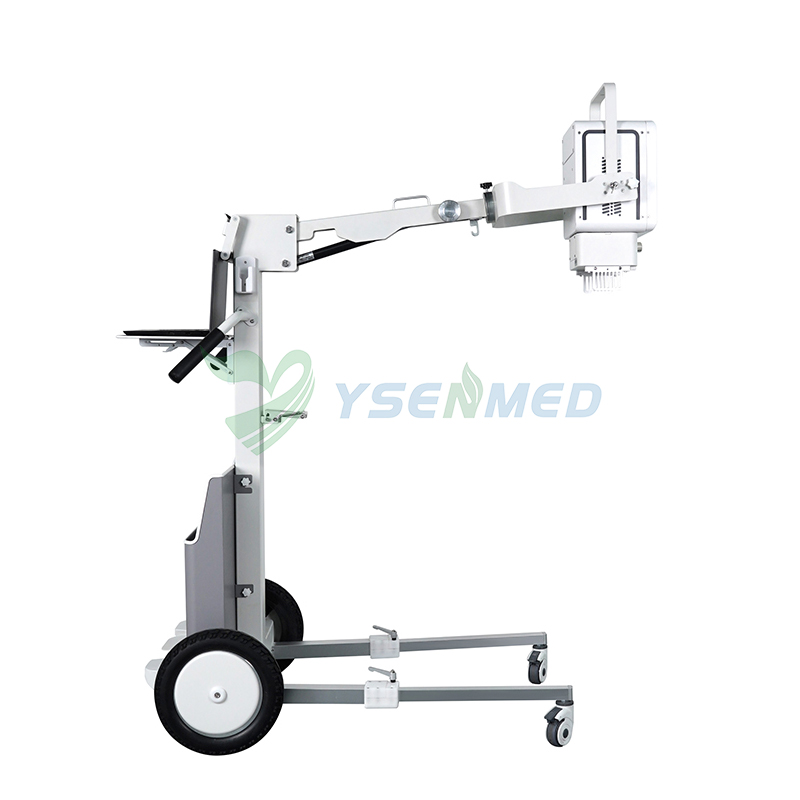

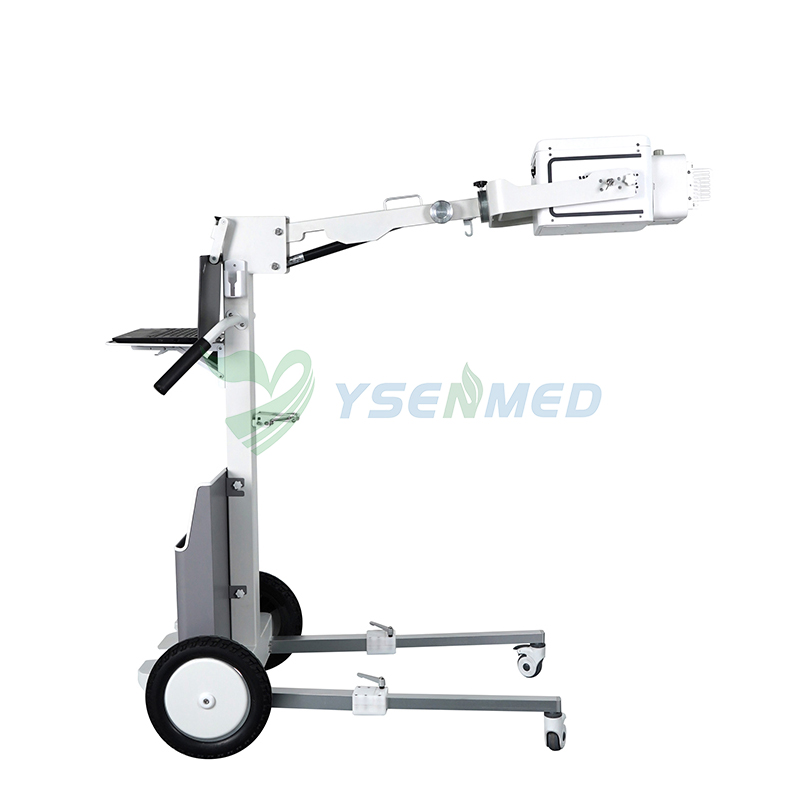

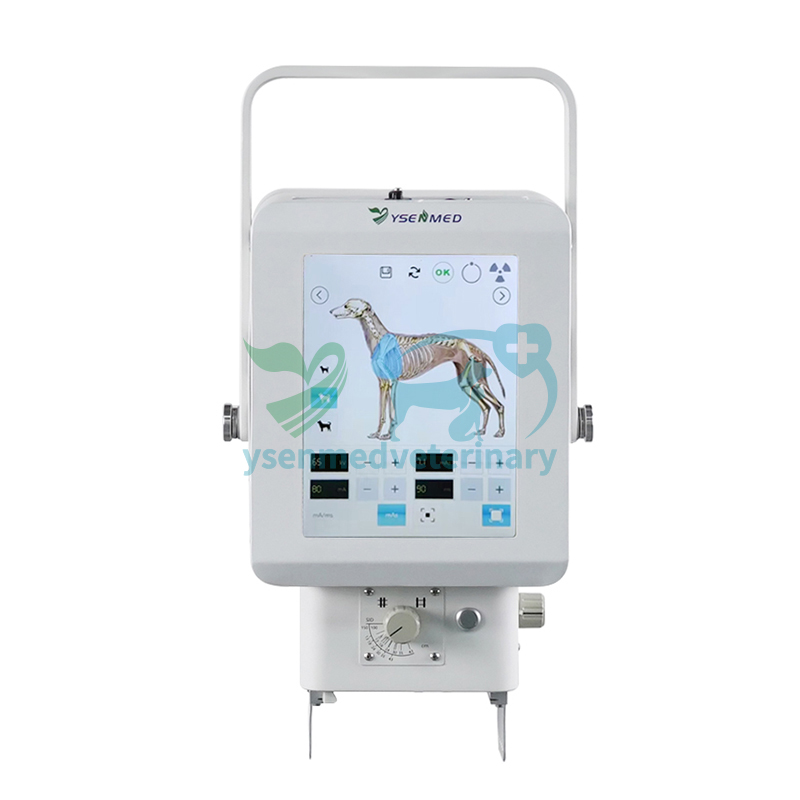

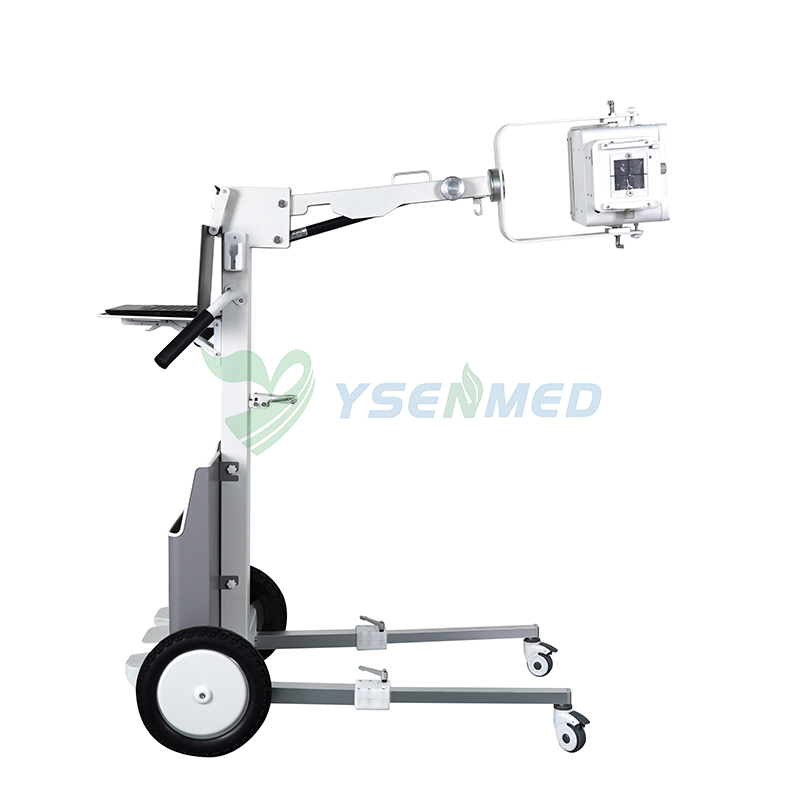

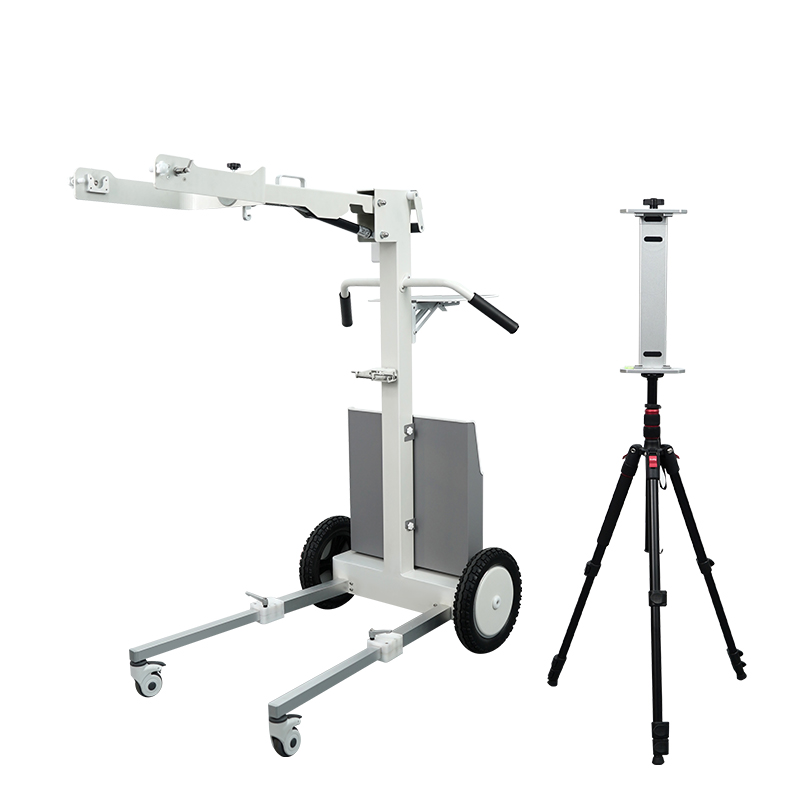

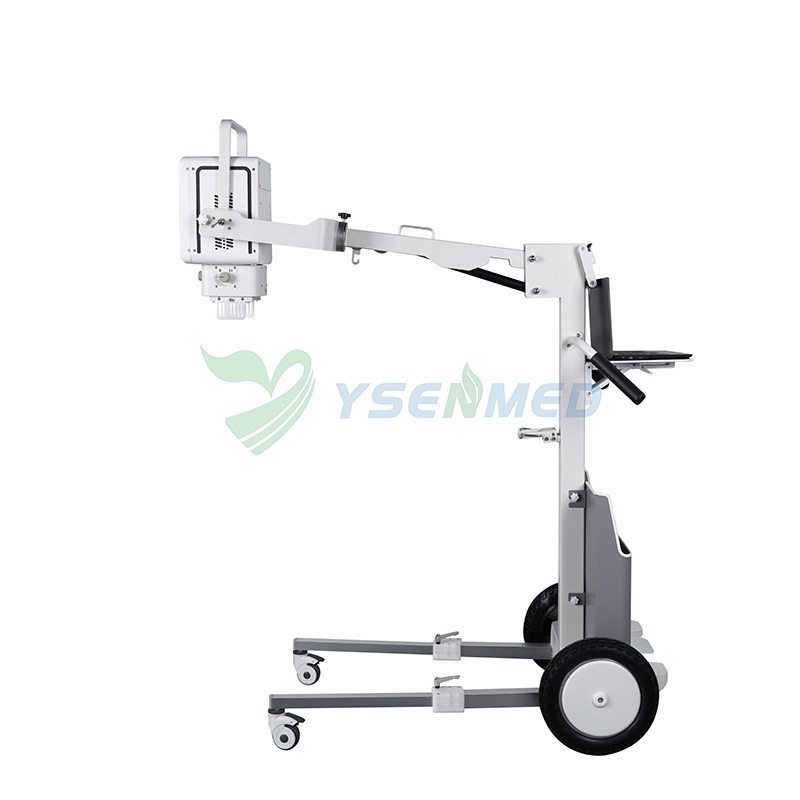

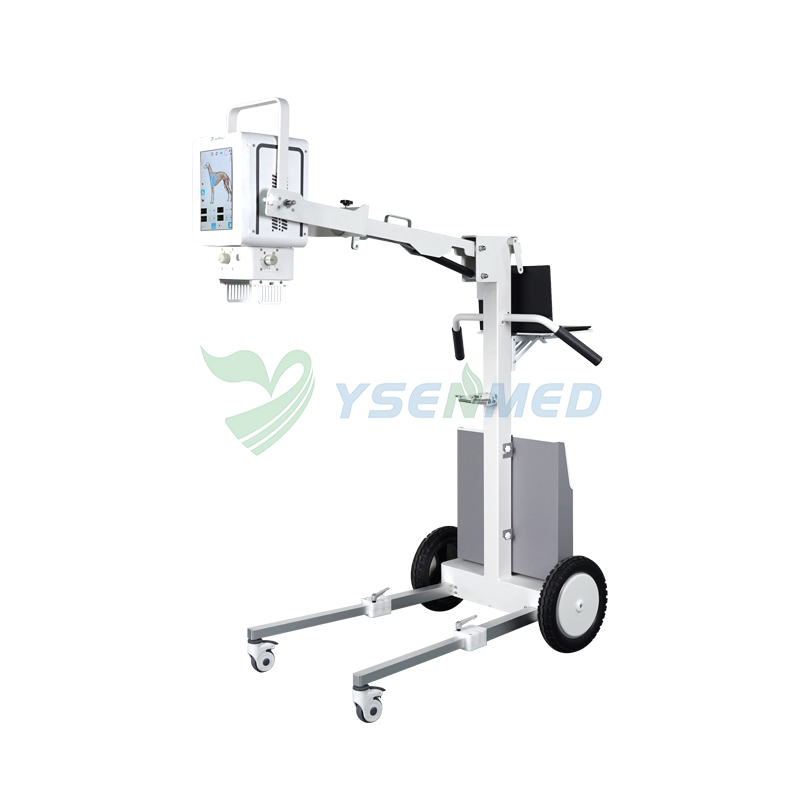

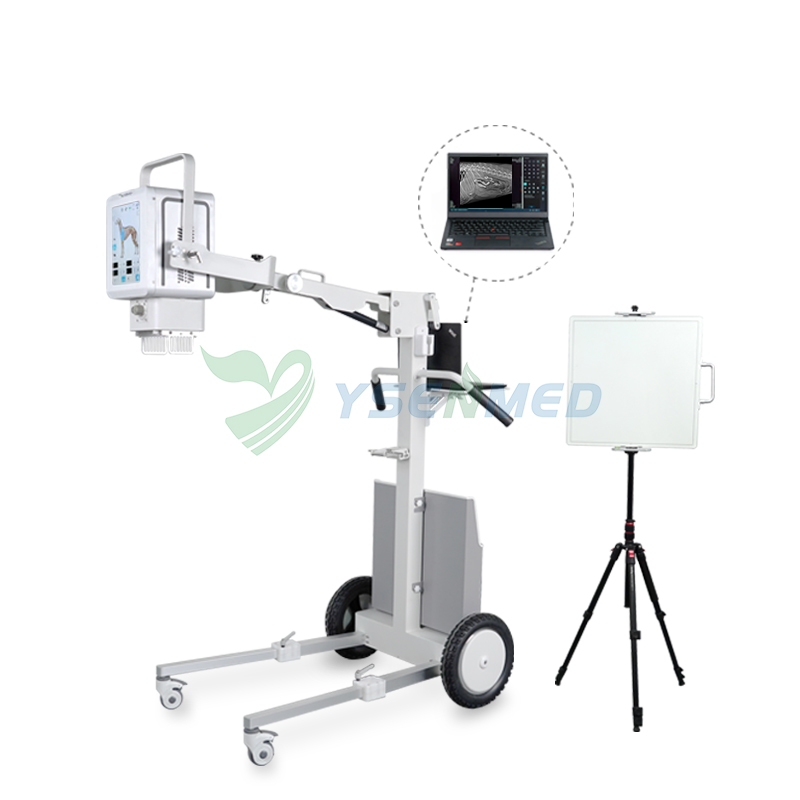

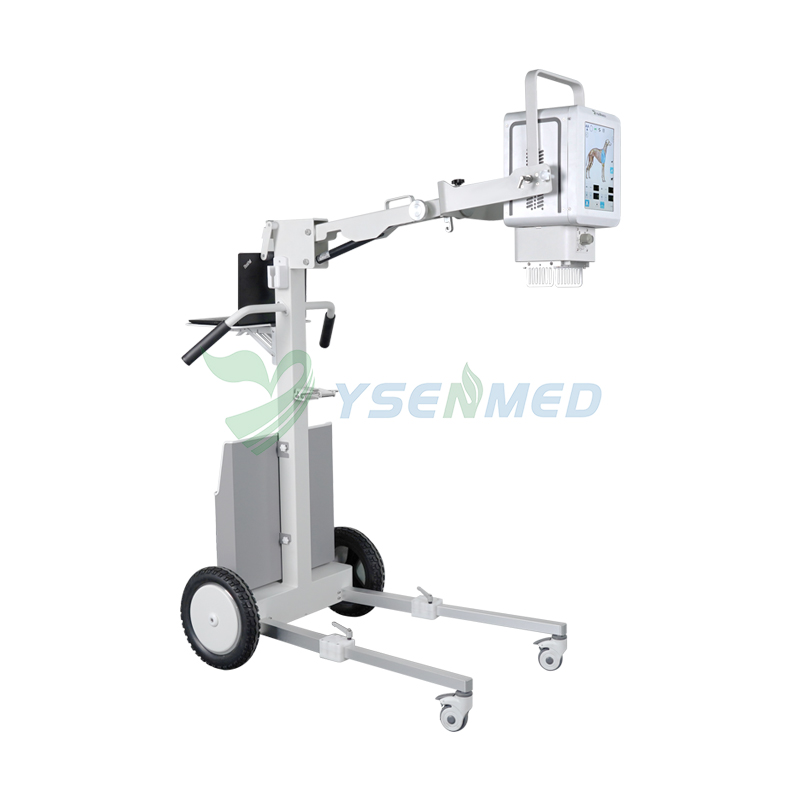

YSX056-PE 5.6kW Digital Portable X-ray Unit
Item No.: YSX056-PE
| Product parameters | |
| Brand: | YSENMED |
| MOQ: | 1 |
| Package: | Carton Package |
| Ship From: | Guangzhou |
| Lead Time: | 3-7 days |
| Customization: | Customized package |
Description
5.6kW Digital Portable X-ray Machine YSX056-PE
| Model | YSX056-PE |
| Maximum output power | 5.6kW |
| Power supply | AC110/220V±10%, 50/60Hz±1Hz |
| mA adjustable range | 5~100 mA |
| mAs adjustable range | 0.1~320 mAs |
| kV adjustable range | 40kV~125kV |
| Exposure time | 1ms~10000ms |
| X-ray tube focus | 0.6mm/1.8mm |
| Heat capacity | 20KJ |
| Working frequency | 80kHz~200kHz |
| Flat panel detector | YSFPD-V1717X |
| Detector size | 17*17 inch |
| Pixel resolution | 3072*3072 |
| Pixel pitch | 139um |
| Imaging time | <8s |
| A/D conversion | 16 bits |
| Spatial resolution | 3.6lp/mm |
| External size | 460*460*15mm |
| Interface | Wired (Wireless can be optional) |
| Software | Professional medical software with multiple languages |
| Laptop parameter | Intel i5 CPU, 8G memory，2G card，128G SSD，PCI-E, R232；22.5 inch display. Other options are available upon request. |
